Description of Product HEXTTK2AIR

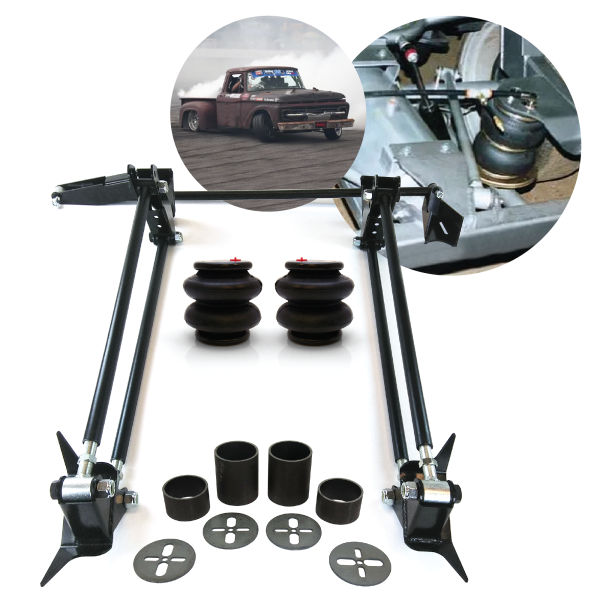

This ultimate kit includes Heavy Duty Parallel Full Size Universal Four Link Kit with Shock Hardware, 2 1/2” Single Port Air Bags with a load rating of 2600 lbs and a Universal Rear Air Bag Bracket Kit.



Helix Parallel Full Size Universal Four Link Kit. Putting a lot of horsepower through your rear end? Helix's New Heavy Duty Universal Parallel 4-Link Kit is stronger than the rest! With the same .156 wall tubing that is the standard in drag racing applications, Helix's full-sized 4-link kit will remain straight and perfectly aligned under even the most demanding applications. Helix's adjustable 4-link features extra long 28 inch bars and provides you with the maximum in suspension travel and adjustability. Sleeved bushings guarantee an extended life and reduced wear during operation. Completely TIG welded for maximum strength. All mounts are cut from 3/16” plate. Special adjustable CNC machined threaded rod ends are thicker than usual and thread over 2.5 inches into the 4-link tubes for both strength and adjustability. Fully plated mounting hardware included.



Looking for an air bag that can give you a smooth ride? Look no further! Helix bags feature a maximum restrained pressure of 602 psi, 8.51 inch usable stroke, with a load range of 2600 lbs, steel braided cord reinforced ribs and multi-layer nylon belt cords bonded into the rubber. The all steel top and bottom plates have rolled crimp connections for unmatched durability. Helix creates a high quality air bag that will give you the performance reliability you want with a smooth ride.



And make sure you install it all correctly with our Universal Rear Air Bag Bracket Kit which includes 2 upper plates, 2 lower plates, 2 upper cups and 2 lower cups.



Stay ahead of the pack with Helix Suspension. For more information on Helix products please contact your local dealer, or go to http://www.helixsuspension.com.

Features

• Includes :: Parallel Four Link Kit with 2 Air Bags & Bracket Kit
• Feature :: Heavy Duty Parallel Full Size Universal Four Link
• Main Bars With Adjusters :: 28.5" (724mm) Long
• Panhard Bar With Adjusters :: 40.75" (1035mm) Long Trimmable
• Bar Wall Thickness :: 4.1mm
• Heavy Duty Bushings :: Yes
• Adjustable Coil Over Bracket Positions :: 3
• Coil Over Brackets :: Lower
• Adjustable :: Yes
• Bar O.D. :: 25 mm
• Brackets :: Included
• Bracket Thickness :: 5mm
• Install Hardware :: Yes
• Number Of Bars :: 5 Including Panhard
• Bushing Included :: Yes
• Shock Hardware :: Yes
• Hardware :: Yes
• Axle :: 3" & 2 3/4"
• --- :: ---
• Includes :: 2 1/2” Single Port Air Bags
• Air Bag Height :: 5.6" - 7.5"
• Air Bag Usable Stoke :: 8.51"
• Air Bag Load Rating :: 2600 lbs
• Air Bag Max PSI :: 602 psi
• Air Bag Minimum Compressed :: 2.8"
• Air Bag Max Extended :: 10.5"
• Air Bag Diameter :: 7.25"
• --- :: ---
• Includes :: Universal Rear Air Bag Bracket Kit
• Bracket Kit Feature :: 2 Upper Plates
• Bracket Kit Feature :: 2 Lower Plates
• Bracket Kit Feature :: 2 Upper Cups
• Bracket Kit Feature :: 2 Lower Cups
• --- :: ---
• Support :: Free Tech Support
• Warranty :: Limited Lifetime Warranty
